Landing Gear
Boeing B777 landing gear is the largest landing gear and the largest tires ever used in a commercial jetliner. Each main gear tire of a 777-300ER carries a maximum rated load of 64,583 lb (29,294 kg) when the aircraft is fully loaded, the heaviest load per tire of any production aircraft ever built.
Boeing 777 has retractable tricycle-type landing gear. Measco and Messieur Bugatti developed the main landing gear under a joint agreement, which features six-wheeled bogies. Control of the steering rear axles is automatically linked to the steering angle of the nose gear.
The Triple Seven main landing gear is fitted with Honeywell Carbenix 4000 brakes. Initial activation of the brakes during taxiing applies the brakes to alternate groups of three wheels only in order to minimise wear on the brakes. The nose gear is twin-wheeled and is steerable.
Landing Gear Incident
On March 1, 2005, after a PIA Boeing 777-200ER landed at Manchester International Airport, England, fire was seen around the left main landing gear. The crew and passengers were evacuated and fire was put under control. Some passengers suffered minor injuries and the aircraft sustained minor damage.
On January 17, 2008, British Airways Flight 38, a 777-200ER flying from Beijing to London, crash-landed approximately 1,000 feet (300 m) short of London Heathrow Airport's runway 27L, and slid onto the runway's threshold. This resulted in damage to the landing gear, wing roots and the engines.
Air Crash Heathrow - BBC First Full Report
Boeing B777 Air Crash Heathrow - BBC First Full Report on Flight BA038.
Heathrow Air Accident British Airways BA038
The flight left Beijing in China at 9.42am local time and had been due to land at Heathrow at 1pm UK time on Thursday 17th January 2008, but was forced to land 18 minutes early, near a busy perimeter road.
Heathrow Air Accident British Airways BA038 Boeing 777-200ER
The flight left Beijing in China at 9.42am local time and had been due to land at Heathrow at 1pm UK time on Thursday 17th January 2008, but was forced to land 18 minutes early, near a busy perimeter road.
Air Crash Heathrow, Flight BA 038 17th Jan. 2008 Boeing B777
Boeing 777, Flight BA 038 from Beijing to London, crashed just short of the runway Heathrow Airport London at 17th january 2008.
Air Crash Heathrow - Flight BA 038 Makes Crash Landing
Air Crash Heathrow - Flight BA Plane Makes Crash Landing Before Runway
Boeing B777 Heathrow - Plane lands short of runway
The plane was a Boeing B777 British Airways flight BA38 from Beijing to London, the airline said.
It is not clear if anyone has been injured during the incident. Emergency services are currently at the scene.
The incident happened as Prime Minister Gordon Brown was due to leave Heathrow for China and India. His flight was delayed because of the incident.
It is not clear if anyone has been injured during the incident. Emergency services are currently at the scene.
The incident happened as Prime Minister Gordon Brown was due to leave Heathrow for China and India. His flight was delayed because of the incident.
Emirates Boeing 777-300
This Boeing 777-300 from Emirates overflies the famous Myrtle Avenue for landing in London Heathrow.
Emirates Boeing 777-300ER Take Off Birmingham BHX
Boeing B777-300ER for Emirates taking off runway 33 at Birmingham uk
Emirates 777-200
Beoing B777 Emirates taxi and take off from Birmingham International (BHX) to Dubai.
Emirates Boeing B777 TakeOff
An Emirates Beoing B777 taking off from Sydney Kingsford Smith Intl on its way to Auckland.
Emirates Boeing 777-300ER is landing in Düsseldorf
Emirates Boeing 777-300ER is landing in Düsseldorf
Boeing 777 British Airways Before Crash-Land
Photos from Airliners.net of Boeing 777-236/ER British Airways before crash-land.
Boeing 777 British Airways Crash-Land
Photos of Boeing 777-236/ER from Airliners.net crash-landed short of the runway at Heathrow Airport.
Boeing 777 Nose
The Nose of Boeing 777
The 777 has the same Section 41 as the 767. This refers to the part of the aircraft from the tip of the nose, going to just behind the cockpit windows. From a head-on view, the end of the section is very evident. This is where the bulk of the aircraft's avionics are stored.
Boeing 777 Nose on airliners.net
Boeing 767 Nose on airliners.net
Boeing 777 Landing Gear
LANDING GEAR
Boeing employed in the Boeing 777 the largest landing gear and the largest tires ever used in a commercial jetliner.
Each main gear tire of a 777-300ER carries a maximum rated load of 64,583 lb (29,294 kg) when the aircraft is fully loaded, the heaviest load per tire of any production aircraft ever built.
Boeing 777 Models
Two characteristics are used by Boeing in order to define their Boeing 777 models.
- Fuselage Size
This affects the number of passengers and amount of cargo that can be carried. The 777-200 and derivatives are the base size. Boeing 777-200 aircraft was stretched into the 777-300A few years later.
- Range
These markets are used to compare the 777 to its competitor, the Airbus A340.
Boeing defined B777 into three segments:
- A market: 3,900 to 5,200 nautical miles (7,223 to 9,630 km)
- B market: 5,800 to 7,700 nautical miles (10,742 to 14,260 km)
- C market: 8,000 nautical miles (14,816 km) and greater
List of Boeing 777 operators
- Air Canada
- Air China
- Air France
- Air India
- Air New Zealand
- Alitalia
- All Nippon Airways
- American Airlines
- Asiana Airlines
- Austrian Airlines
- Avion Group
- British Airways
- Cathay Pacific Airways
- China Southern Airlines
- Continental Airlines
- Delta Air Lines
- Egyptair
- El Al
- Emirates Airline
- EVA Air
- FedEx
- Garuda Indonesia
- GECAS
- ILFC
- Japan Airlines
- Jet Airways
- Kenya Airways
- KLM - Royal Dutch Airlines
- Korean Air
- Kuwait Airways
- Malaysia Airlines
- Mid East Jet
- Pakistan International Airlines
- Philippine Airlines
- Qatar Airways
- Saudi Arabian Airlines
- Saudi Oger
- BOC Aviation
- Singapore Airlines
- TAAG Angola Airlines
- Thai Airways International
- United Airlines
- Vietnam Airlines

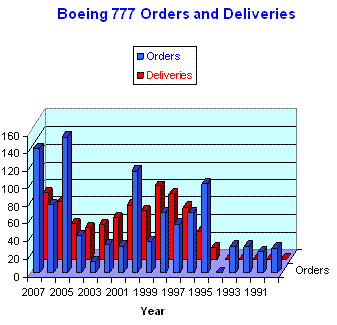

Boeing 777 Orders and Deliveries Chart
As of December 2007, 53 customers have placed orders for 1,044 Boeing 777s.
Boeing delivered 679 Boeing 777 from various model.
Boeing 777 Orders and Deliveries
| Orders | | Deliveries | ||
| 2007 | 141 | | 2007 | 75 |
| 2006 | 77 | | 2006 | 65 |
| 2005 | 154 | | 2005 | 40 |
| 2004 | 42 | | 2004 | 36 |
| 2003 | 13 | | 2003 | 39 |
| 2002 | 32 | | 2002 | 47 |
| 2001 | 30 | | 2001 | 61 |
| 2000 | 116 | | 2000 | 55 |
| 1999 | 35 | | 1999 | 83 |
| 1998 | 68 | | 1998 | 74 |
| 1997 | 55 | | 1997 | 59 |
| 1996 | 68 | | 1996 | 32 |
| 1995 | 101 | | 1995 | 13 |
| 1994 | 0 | | 1994 | 0 |
| 1993 | 30 | | 1993 | 0 |
| 1992 | 30 | | 1992 | 0 |
| 1991 | 24 | | 1991 | 0 |
| 1990 | 28 | | 1990 | 0 |
Incident and Accident of Boeing 777
The only known fatality involving a Boeing 777 occurred in a refueling fire at
2004
On August 24, 2004, A Singapore Airlines Boeing 777-312 had an engine explosion on takeoff at
2005
On March 1, 2005, a PIA Boeing 777-200ER after landing at
On August 1, 2005, A Malaysia Airlines Boeing 777-200ER gave conflicting reports of overspeed and stalling after the plane took off from
2008
On January 17, 2008, British Airways Flight 36 landed short of Runway 27L at
Boeing 777-300ER Specification
| | 777-300ER |
| Cockpit crew | Two |
| Seating capacity, typical | 365 (3-class) |
| Length | 242 ft 4 in (73.9 m) |
| Wingspan | 212 ft 7 in (64.8 m) |
| Wing Sweepback | 31.64° |
| Tail Height | 61 ft 5 in (18.7 m) |
| Cabin Width | 19 ft 3 in (5.86 m) |
| Fuselage Width | 20 ft 4 in (6.19 m) |
| Cargo Capacity | 7,080 ft³ (200 m³) |
| Empty Weight | 366,940 lb |
| (166,881 kg) | |
| Maximum take-off weight | 775,000 lb |
| (351,534 kg) | |
| Cruising Speed at 35,000 ft cruise altitude | 0.84 Mach (560 mph, 905 km/h, 490 knots) |
| Maximum Cruise Speed at 35,000 ft cruise altitude | 0.89 Mach (587 mph, 945 km/h, 510 knots) |
| | 5,500 nm |
| (10,190 km) | |
| | 7,930 nm |
| (14,685 km) | |
| Takeoff run at MTOW ISA+15 MSL | 10,500 ft (3,200 m) |
| Maximum Fuel Capacity | 47,890 |
| (181,280 L) | |
| Service Ceiling | 43,100 ft (13,140 m) |
| Engine (x 2) | GE90-115B |
| Thrust (x 2) | GE: 115,000 lbf (510 kN) |
Boeing 777-300 Specification
| | 777-300 |
| Cockpit crew | Two |
| Seating capacity, typical | 368 (3-class) |
| | 451 (2-class) |
| Length | 242 ft 4 in (73.9 m) |
| Wingspan | 199 ft 11 in (60.9 m) |
| Wing Sweepback | 31.64° |
| Tail Height | 60 ft 8 in (18.5 m) |
| Cabin Width | 19 ft 3 in (5.86 m) |
| Fuselage Width | 20 ft 4 in (6.19 m) |
| Cargo Capacity | 7,080 ft³ (200 m³) |
| Empty Weight | 353,600 lb |
| (160,120 kg) | |
| Maximum take-off weight | 660,000 lb |
| (299,370 kg) | |
| Cruising Speed at 35,000 ft cruise altitude | 0.84 Mach (560 mph, 905 km/h, 490 knots) |
| Maximum Cruise Speed at 35,000 ft cruise altitude | 0.89 Mach (587 mph, 945 km/h, 510 knots) |
| | 3,800 nm |
| (7,035 km) | |
| | 6,015 nm |
| (11,135 km) | |
| Takeoff run at MTOW ISA+15 MSL | 11,200 ft (3,410 m) |
| Maximum Fuel Capacity | 45,220 |
| (171,160 L) | |
| Service Ceiling | 43,100 ft (13,140 m) |
| Engine (x 2) | PW 4098 |
| RR 892 | |
| GE90-94B | |
| Thrust (x 2) | PW: 98,000 lbf (430 kN) |
| RR: 92,000 lbf (400 kN) | |
| GE: 94,000 lbf (410 kN) |
Boeing 777 Freighter Specification
| | 777 Freighter |
| Cockpit crew | Two |
| Seating capacity, typical | N/A |
| | |
| Length | 212 ft 1 in (63.7 m) |
| Wingspan | 212 ft 7 in (64.8 m) |
| Wing Sweepback | 31.64° |
| Tail Height | 61 ft 1 in (18.6 m) |
| Cabin Width | 19 ft 3 in (5.86 m) |
| Fuselage Width | 20 ft 4 in (6.19 m) |
| Cargo Capacity | 22,455 ft³(636 m³) |
| Empty Weight | 326,000 lb |
| (148,181 kg) | |
| Maximum take-off weight | 766,000 lb |
| (347,450 kg) | |
| Cruising Speed at 35,000 ft cruise altitude | 0.84 Mach (560 mph, 905 km/h, 490 knots) |
| Maximum Cruise Speed at 35,000 ft cruise altitude | 0.89 Mach (587 mph, 945 km/h, 510 knots) |
| | 4,895 nm |
| (9,065 km) | |
| | 4,895 nm |
| (9,065 km) | |
| Takeoff run at MTOW ISA+15 MSL | 11,600 ft (3,536 m) |
| Maximum Fuel Capacity | 47,890 |
| (181,280 L) | |
| Service Ceiling | 43,100 ft (13,140 m) |
| Engine (x 2) | GE90-110B |
| | |
| | |
| Thrust (x 2) | GE: 110,000 lbf (480 kN) |
| | |
| |
